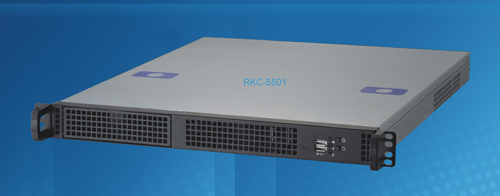

| RKC-F5501 |
Specification:
|
Series No. |
Specification |
|
1 |
Material: |
SGCC 1.2mm |
|
2 |
Dimension: |
430mm(W)x550 mm(D)x 44.4mm(H) |
|
3 |
Support Motherboard: |
\ |
|
CEB( 12"*10.5") |
|
ATX (12"x9.6") |
|
4 |
Support CPU: |
DP XEON(Intel) |
|
DP Opteron (AMD) |
|
UP P4/LGA755(Intel) |
|
UP Pentium-D(Intel) |
|
DP Nocona(Intel) |
|
5 |
HDD Space: |
2(3.5") |
|
6 |
CD-Room Space: |
1 (5.25") |
|
7 |
Cooling fan: |
4pcsx4028 fans |
|
10 |
Power Supply: |
Standard 1U (Optional) |
Feature:
|
Series No. |
Feature |
|
1 |
Can fix different mother board |
|
2 |
Super Ventilation deign, Support Intel EEB, CEB,P4, Intel Mobile CPU/ AMD DP Operation CPU |
|
3 |
Connect Motherboard and disk array communication with SATA/ SAS Cable, Max transmission speed:300Mb/s,Support HDD max Capacity: 1TB |
|
4 |
With SAS back panel (compatible SATA), Support RAID 0,1,5,10 |
|
5 |
Top cover fix to main body directly, no need tool |
|
6 |
Chassis front panel: SGCC 1.22 material offer Radiation protection Excellent corrosion resistance function |
|
7 |
Comply with EMC standard, with wire netting between plastic surface panel and bracket |
Including:
|
Series No. |
Part Name |
Qty |
|
1 |
Top Cover |
1 |
|
2 |
Handle |
2 |
|
3 |
Faceplate |
1 |
|
4 |
Light Panel |
1 |
|
5 |
HDD bracket |
6 |
|
6 |
Mounting ear |
2 |
|
7 |
Fan |
4 |
|
8 |
10 barrier chip |
1 |
|
9 |
Back Panel |
1 |
|
10 |
Base |
1 |
|
11 |
Fan bracket |
2 |
|
12 |
Fan connecting panel |
1 |
|
