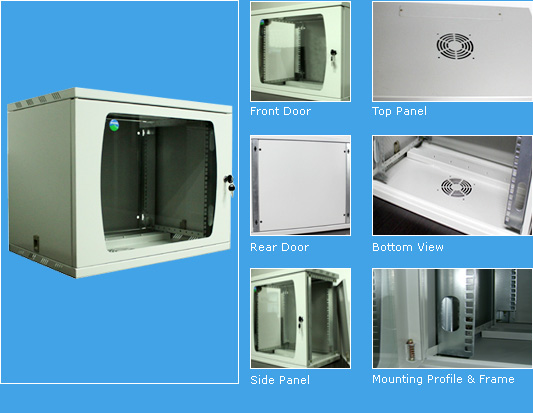

| WBE Single Section Wall Box |
Color: RAL9004/RAL7035/RAL7044(Optional)
Loading Capacity: 60kgs
Surface: Epoxy Powder Coated
Protection Class: IP20
package: Flat Pack/ Assembled (Optional)
Standard: Comply with ANSI/EIA;RS-310D;IEC297-2;DIN41491:PART 1;DIN41494:PART 7;GB/T3047.2-92.
Model List:
| Capacity/Height |
Width(mm) |
Depth/Part Number: |
| Capacity(U) |
Height (mm) |
420mm |
| 15U |
747mm |
600mm |
WBE-6415 |
| 12U |
613mm |
WBE-6412 |
| 9U |
480mm |
WBE-6409 |
| 6U |
347mm |
WBE-6406 |
| 4U |
258mm |
WBE-6404 |
Including:
| S/N. |
Part Name |
Material |
Unit |
Qty |
Remark |
| 1 |
Front door |
SPCC t=1.0 |
pc |
1 |
Glass door,LK=C cam lock(H=25mm) |
| 2 |
Rear Panel |
SPCC t=1.0 |
pc |
1 |
Optional(Standard not including) |
| 3 |
Side panel |
SPCC t=1.0 |
pcs |
2 |
With 1pc fast open bolt |
| 4 |
Top Panel |
SPCC t=1.0 |
pc |
1 |
...... |
| 5 |
Bottom Panel |
SPCC t=1.0 |
pc |
1 |
...... |
| 6 |
Mounting Profile |
SPCC t=1.5 |
pc |
4 |
Powerder coated or zinc plated (optional) |
| 7 |
Plastic spacing screw |
...... |
pc |
8 |
...... |
| 8 |
Screw & nuts |
...... |
set |
10 |
4U-15U:10 sets(M6) |
| 9 |
Screw & nuts |
...... |
set |
10 |
M6X12(Crown screw and nuts) |
| 10 |
Cable entrance cover |
SPCC t=1.2 |
set |
1 |
Use for fixing on wall for hanging | 1U=44.45mm 19 inch=482.60mm
|
