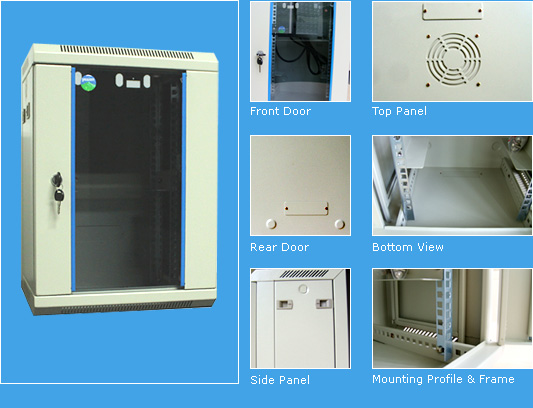

| WBD Single Section Wall Box |
Color: RAL9004/RAL7035/RAL7044(Optional)
Loading Capacity: 60kgs
Surface: Epoxy Powder Coated
Protection Class: IP20
package: Assembled
Standard: Comply with ANSI/EIA;RS-310D;IEC297-2;DIN41491:PART 1;DIN41494:PART 7;GB/T3047.2-92.
Model List:
| Capacity/Height |
Width |
Depth/Model No. |
| Capacity(U) |
Height(mm) |
300mm |
| 15U |
767mm |
371.5mm |
WBD-3315 |
| 12U |
633mm |
WBD-3312 |
| 9U |
500mm |
WBD-3309 |
| 6U |
368mm |
WBD-3306 |
| 4U |
278mm |
WBD-3304 |
Including:
| S/N. |
Part Name |
Material |
Unit |
Qty |
Remark |
| 1 |
Welded Body |
SPCC t=1.2 |
set |
1 |
Including top,back parts and bottom |
| 2 |
Front door |
SPCC t=1.2 |
pc |
1 |
Glass door,LK=C cam lock |
| 3 |
Side panel |
SPCC t=1.2 |
pcs |
2 |
With 2pcs fast open bolt |
| 4 |
Mounting Profile |
SPCC t=2.0 |
pc |
2 |
Powerder coated or zinc plated (optional) |
| 5 |
L bracket |
SPCC t=1.5 |
pc |
2 or 4 |
4U-12U:2pcs,15U-18U:4pcs |
| 6 |
Screw & nuts |
...... |
set |
10 or 20 |
4U-12U:10 sets,15U-18U:20 sets |
| 7 |
Mounting Panel |
SPCC t=1.2 |
set |
1 |
Use for fixing on wall for hanging | 1U=44.45mm 19 inch=482.60mm
|
