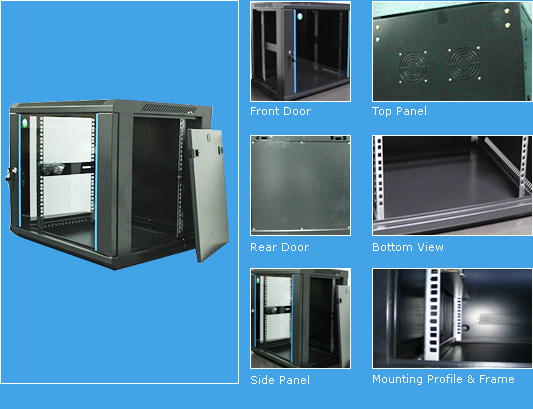

| WBC Single Section Wall Box |
Color: RAL9004/RAL7035/RAL7044(Optional)
Loading Capacity: 60kgs
Surface: Epoxy Powder Coated
Protection Class: IP20
package: Flat Pack/ Assembled (Optional)
Standard: Comply with ANSI/EIA;RS-310D;IEC297-2;DIN41491:PART 1;DIN41494:PART 7;GB/T3047.2-92.
Model List:
| Capacity/Height |
Width(mm) |
Depth/Model No. |
| Capacity(U) |
Height(mm) |
450mm |
600mm |
| 18U |
900mm |
600mm |
WBC-6418 |
WBC-6618 |
| 15U |
767mm |
WBC-6415 |
WBC-6615 |
| 12U |
633mm |
WBC-6412 |
WBC-6612 |
| 9U |
500mm |
WBC-6409 |
WBC-6609 |
| 6U |
368mm |
WBC-6406 |
WBC-6606 |
| 4U |
278mm |
WBC-6404 |
WBC-6604 |
Including:
| S/N. |
Part Name |
Material |
Unit |
Qty |
Remark |
| 1 |
Frame |
SPCC t=1.2 |
pc |
2 |
...... |
| 2 |
Mounting bream |
SPCC t=1.2 |
pc |
4 |
...... |
| 3 |
Front door |
SPCC t=1.5 |
pc |
1 |
Glass door,LK=C cam lock |
| 4 |
Rear Panel |
SPCC t=1.2 |
pc |
1 |
Fix with top and bottom with screws |
| 5 |
Side panel |
SPCC t=1.5 |
pcs |
2 |
With 2pcs fast open bolt |
| 6 |
Top Panel |
SPCC t=1.5 |
pc |
1 |
...... |
| 7 |
Bottom Panel |
SPCC t=1.2 |
pc |
1 |
...... |
| 8 |
Mounting Profile |
SPCC t=2.0 |
pc |
4 |
Powerder coated or zinc plated (optional) |
| 9 |
L bracket |
SPCC t=1.5 |
pc |
2 or 4 |
4U-12U:2pcs,15U-18U:4pcs |
| 10 |
Screw & nuts |
...... |
set |
10 or 20 |
4U-12U:10 sets,15U-18U:20 sets |
| 11 |
Mounting Panel |
SPCC t=1.5 |
set |
1 |
Use for fixing on wall for hanging | 1U=44.45mm 19 inch=482.60mm
|
