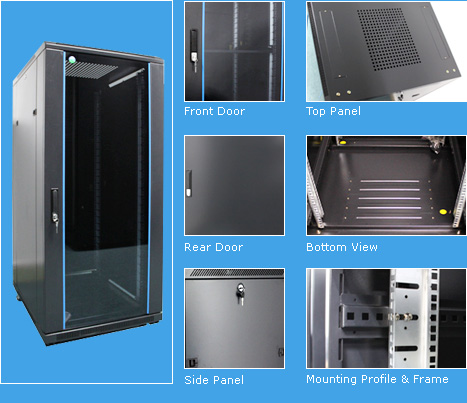

| RCE Network Cabinet |
Color: RAL9004/RAL7035/RAL7044(Optional)
Loading Capacity: 800kgs
Surface: Epoxy Powder Coated
Protection Class: IP20
package: Flat Pack/ Assembled (Optional)Standard:Comply with ANSI/EIA;RS-310D;IEC297-2;DIN41491:PART 1;DIN41494:PART 7;GB/T3047.2-92.
Model List:
| Capacity/Height |
Width |
Depth/Model No. |
| Capacity(U) |
Height(mm) |
600mm |
800mm |
900mm |
1000mm |
| 47U |
2272mm |
600mm |
RCE-6647 |
RCE-6847 |
RCE-6947 |
RCE-61047 |
| 42U |
2005mm |
RCE-6642 |
RCE-6842 |
RCE-6942 |
RCE-61042 |
| 37U |
1828mm |
RCE-6637 |
RCE-6837 |
RCE-6937 |
RCE-61037 |
| 32U |
1605mm |
RCE-6632 |
RCE-6832 |
RCE-6932 |
RCE-61032 |
| 27U |
1383mm |
RCE-6627 |
RCE-6827 |
RCE-6927 |
RCE-61027 |
| 22U |
1158mm |
RCE-6622 |
RCE-6822 |
RCE-6922 |
RCE-61022 |
| 18U |
983mm |
RCE-6618 |
RCE-6818 |
RCE-6918 |
RCE-61018 |
| 47U |
2272mm |
800mm |
RCE-8647 |
RCE-8847 |
RCE-8947 |
RCE-81047 |
| 42U |
2005mm |
RCE-8642 |
RCE-8842 |
RCE-8942 |
RCE-81042 |
| 37U |
1828mm |
RCE-8637 |
RCE-8837 |
RCE-8937 |
RCE-81037 |
| 32U |
1605mm |
RCE-8632 |
RCE-8832 |
RCE-8932 |
RCE-81032 |
| 27U |
1383mm |
RCE-8627 |
RCE-8827 |
RCE-8927 |
RCE-81027 |
| 22U |
1158mm |
RCE-8622 |
RCE-8822 |
RCE-8922 |
RCE-81022 |
| 22U |
983mm |
RCE-8618 |
RCE-8818 |
RCE-8918 |
RCE-81018 |
| 1U=44.45mm 19 inch=482.60mm |
Including:
| S/N. |
Part Name |
Qty |
Unit |
Material |
Remark |
| W=600(mm) |
W=800(mm) |
(mm) |
| 1 |
Frame |
2 |
2 |
set |
SPCC t=1.2 |
...... |
| 2 |
Front door |
1 |
1 |
pc |
SPCC t=1.2 |
Glass door,LK-A Spring lock |
| 3 |
Rear door |
1 |
1 |
set |
SPCC t=1.2 |
Plain metal door,LK-C cam lock |
| 4 |
Side panel |
2 |
2 |
pcs |
SPCC t=1.2 |
each side with 2pcs fast open bolt |
| 5 |
Top Panel |
1 |
1 |
pc |
SPCC t=1.2 |
with 2pcs rectangle shape cable entrance |
| 6 |
Bottom Panel |
1 |
1 |
pc |
SPCC t=1.2 |
with 2pcs rectangle shape cable entrance |
| 7 |
Mounting Profile |
4 |
4 |
pcs |
SPCC t=2.0 |
Powerder coated or zinc plated (optional) |
| 8 |
Mounting beam |
2 |
4 or 6 |
pcs |
SPCC t=1.5 |
22U-32U:4pcs;37U-47U:6pcs |
| 9 |
wheel |
4 |
4 |
pcs |
...... |
2 inch,without brake |
| 10 |
Jacking feet |
4 |
4 |
pcs |
...... |
M12 |
| 11 |
Screw and nuts |
20 or 40 |
20 or 40 |
sets |
...... |
M6 Cross head screw,22U-32U:20 sets;37U-47U:40 sets |
| 12 |
Vertical cable manager |
...... |
2 |
pcs |
SPCC t=1.5 |
only W=800mm cabinets need |
| 13 |
Spacer |
...... |
8 or 12 |
pcs |
SPCC t=1.2 |
only W=800mm cabinets need |
| 14 |
Manual |
1 |
1 |
pc |
...... |
...... |
|
