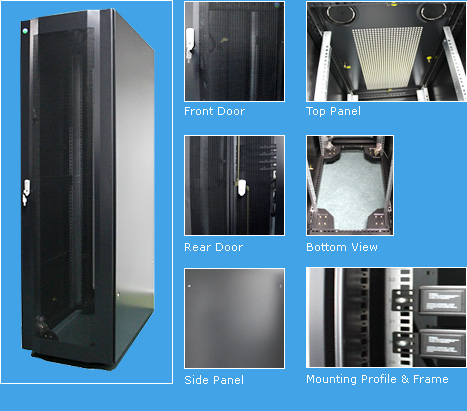

| RCB Server Cabinet |
Color: RAL9004/RAL7035/RAL7044(Optional)
Loading Capacity: 1000kgs
Surface: Epoxy Powder Coated
Protection Class: IP20
package: Assembled Standard:Comply with ANSI/EIA;RS-310D;IEC297-2;DIN41491:PART 1;DIN41494:PART 7;GB/T3047.2-92.Compatible ETSI standard.
Model List:
| Capacity/Height |
Width(mm) |
Depth/Model No. |
| Capacity(U) |
Height(mm) |
600mm |
800mm |
900mm |
1000mm |
| 47U |
2272mm |
600mm |
RCB-6647 |
RCB-6847 |
RCB-6947 |
RCB-61047 |
| 42U |
2005mm |
RCB-6642 |
RCB-6842 |
RCB-6942 |
RCB-61042 |
| 37U |
1828mm |
RCB-6637 |
RCB-6837 |
RCB-6937 |
RCB-61037 |
| 22U |
1158mm |
RCB-6622 |
RCB-6822 |
RCB-6922 |
RCB-61022 |
| 47U |
2272mm |
800mm |
RCB-8647 |
RCB-8847 |
RCB-8947 |
RCB-81047 |
| 42U |
2005mm |
RCB-8642 |
RCB-8842 |
RCB-8942 |
RCB-81042 |
| 37U |
1828mm |
RCB-8637 |
RCB-8837 |
RCB-8937 |
RCB-81037 |
| 22U |
1158mm |
RCB-8622 |
RCB-8822 |
RCB-8922 |
RCB-81022 | 1U=44.45mm 19 inch=482.60mm
Including:
| S/N. |
Part Name |
Qty |
Unit |
Material |
Remark |
| W=600(mm) |
W=800(mm) |
(mm) |
| 1 |
Frame |
1 |
1 |
set |
SPCC t=1.5 |
9 times bended frame |
| 2 |
Front door |
1 |
1 |
pc |
SPCC t=1.2 |
Perforated arch door(Dia=5mm) door, LK-B type lock |
| 3 |
Rear door |
1 |
1 |
set |
SPCC t=1.2 |
Double openning perforated round (Dia=5mm,2mm spacing) holes door, LK-B type lock |
| 4 |
Side panel |
2 |
2 |
pcs |
SPCC t=1.2 |
each side with 2pcs fast open bolt |
| 5 |
Top |
1 |
1 |
pc |
SPCC t=1.2 |
with 2pcs round shape cable entrance |
| 6 |
Mounting Profile |
4 |
4 |
pcs |
SPCC t=2.0 |
Powerder coated or zinc plated (optional) |
| 7 |
Mounting beam |
2 |
2 |
pcs |
SPCC t=1.5 |
22U-32U:2pcs;37U-47U:2pcs |
| 8 |
wheel |
4 |
4 |
pcs |
...... |
2.5 inch,without brake |
| 9 |
wheel tray |
4 |
4 |
pcs |
SPCC t=2.5 |
...... |
| 10 |
Jacking feet |
4 |
4 |
pcs |
...... |
M12 |
| 11 |
Screw and nuts |
20 or 40 |
20 or 40 |
sets |
...... |
M6 Cross head screw,22U-32U:20 sets;37U-47U:40 sets |
| 12 |
Vertical cable manager |
...... |
2 |
pcs |
SPCC t=1.5 |
only W=800mm cabinets need |
| 13 |
Cable ring |
...... |
8 or 10 |
pcs |
SPCC t=2.0 |
only W=800mm cabinets need(Optional)(Optiona) |
| 14 |
Spacer |
...... |
8 or 12 |
pcs |
SPCC t=1.2 |
only W=800mm cabinets need |
| 15 |
Manual |
1 |
1 |
pc |
...... |
...... |
|
