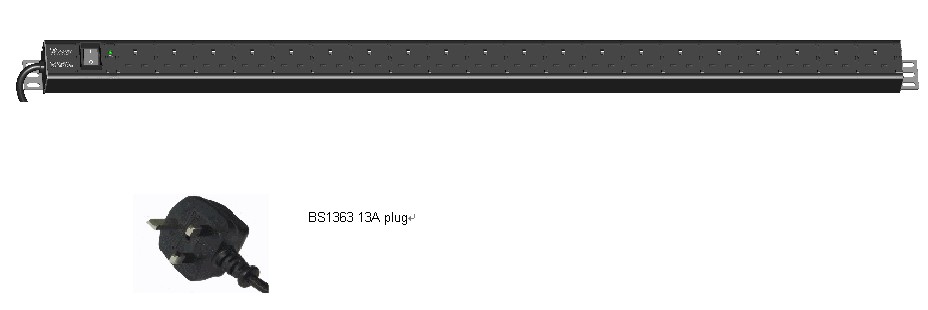

| PDU-BS-20B |
|
No. |
Item |
Detail Description |
|
1 |
Product Series: |
PDU-BS |
|
2 |
Socket Type: |
BS1363 (90 degree) Outlet Module[20]; |
|
3 |
Power Input: |
20 ways |
|
4 |
Socket Quantity: |
Left end single input |
|
5 |
Bracket Install: |
Inverse installation |
|
6 |
Cable with plug: |
BS1363 13A plug |
|
7 |
Control Function: |
16A Master power switch & indicator |
|
8 |
Protection Function: |
No protecting function |
|
9 |
Case color: |
Black |
|
10 |
Cable Specification: |
3 x 1.5 mm² x 3M |
|
11 |
Product Size: |
L x W x H =1263 x 44.4 x 62 mm |
|
12 |
Mounting Length: |
1005 mm |
|
13 |
Case Length: |
1235 mm |
|
14 |
PDU Exponent: |
2.88 |
|
15 |
Fittings: |
2pcs 616mm cross bolt, 2pcs M6 float nut, PDU manual |
|
16 |
Product Label: |
Product Name: |
Designated Power Distribution Unit for Cabinet |
|
Specification Model: |
PDU-BS-20B |
|
Rating voltage: |
250VAC 50/60Hz |
|
Rating Current: |
13A |
|
Max. Current: |
|
|
Max. Power: |
3250W |
|
Safety Authentication: |
CE |
|
Logo: |
Optional |
|
Producer: |
Optional |
|
17 |
Socket assemble |
|
|
|
18 |
Interior Connection Wire |
1.5 mm² |
|
|
19 |
Interior Connection Style |
Standard connection |
|
20 |
Fix the Cable |
Small cable clamp |
|
21 |
Module Assemble(from left to right) |
|
|
