Description:

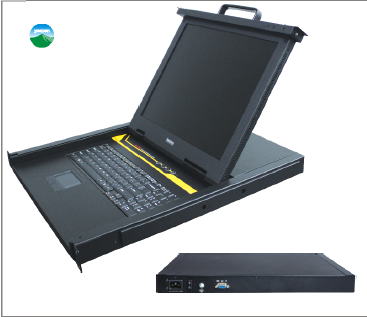

KVM-P1701 is the KVM Console which is mounted in 1U of rack space; adapted to 19 "standard rack installation and is operated with single computer by integrated LCD, keyboard, Touch Pad mouse.
Features:
* Set keyboard / mouse / display functions as one of the 3-in-1 LCD
display control Platform
* Can be connected to a computer or KVM switch directly, to operate
single or multiple computers
* 17" A-Grade TFT LCD Panel; high brightness, high-definition, high-
resolution display
* PS2 thinness Keyboard with 99 keys (82 +17)
* Standard PS / 2 Touch pad mouse
* Front panel with lock
* Rail with automatic locking device
Product Specification:
|
|
Performance Parameters |
Product Specification |
|
TFT LCD |
LCD Type |
XGA TFT |
|
Display area |
17" |
|
Resolution |
|
|
Color |
16.7 M |
|
Luminance |
400 cd/m²( T y p ) |
|
Contrast ratio |
500 : 1 ( T y p ) |
|
Back light |
4-CCFLs |
|
Pixels intervals (mm) |
0.264(H)X0.264(W) |
|
LCD MTBF
|
> 50,000 hrs |
|
Working Voltage |
5V DC |
|
Power Consumption |
< 40W |
|
LCD OSD Control Keys |
OSD Control Keys |
4 Xkeys |
|
LCD OSD Control Keys |
LCD Power |
1X switch |
|
KEY BOARD |
Keys |
99keys (82keys+17 independent Number keys) |
|
compatible IBM/AT |
support Windows 9X /Me/NT/2000/XP |
|
MTBF |
> 10,000,000 time |
|
MOUSE |
X/Y resolution |
>1000 point / inch, (40point/mm) |
|
Hardware interface |
PS/2 or USB |
|
Wheel |
Support wheel function |
|
OS |
Support Windows 9X /Me/NT/2000/XP |
|
MTBF |
> 1,000,000 times |
|
PC selection |
OSD menu,hotkey |
|
Auto Scan Intervals |
5~99 Sec |
|
Power Supply
(Matching) |
AC |
90V- 264V AC/ Double Output(Max): 19.2W |
|
DC |
-36V - 72V DC / Double Output (Max):19.2W |
|
MTBF |
>60,000 hrs ( 25 degree ) |
|
Net Weight |
13.7kg |
|
Unit Dimensions (W x D x H) |
448mmX546mmX42.5mm |
|
Package Size (W x D x H) |
755mmX655mmX195mm |
|
Working Temperature / Store Temperature |
0-50 degree /-20 -60 degree |
|
Humidity |
0~80%, Non-Condensing |
|
