Description:

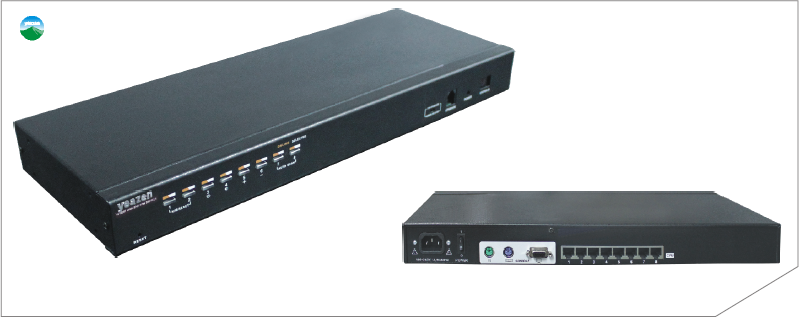

The KVM Switches are control units that allow access to multiple computers from a single KVM (keyboard, monitor and mouse) console.
There is no better way to save time and money than with a KVM Switches
installation. By allowing a single console to manage up to 512 computers, a KVM Switches installation can:
1) Eliminates the expense of having to purchase a separate keyboard, monitor, and mouse for each;
2) Saves all the space those extra component would take up;
3) Saves on energy costs
4) Eliminates the inconvenience and wasted effort involved in constantly moving form one computer to another
Setting up the KVM Switches is fast and easy; plugging cables into their appropriate ports is all that is entailed. Because the KVM Switches intercepts keyboard and mouse input directly, there is no software to configure; no need to get involved in complex installation routines; no need to be concerned with incompatibility problems.
Access to any computer on the installation is easily accomplished-either by pressing front panel port selection switches; entering hotkey combinations from the keyboard; or by means of a powerful menu driven OSD( On Screen Display) system. A convenient Auto Scan function also permits automatic scanning and
one- by-one monitoring of the activities of selected computer.
The Switches feature RJ-45 connectors and CAT5 cable to link to the computers. It can travel up to 100m - eliminating the need for KVM extenders.
Features:
*A single console controls up to 8 or 16 computers.
*Extends the distance between computers and switch- up to 50m
for resolutions for 1600*1200@60Hz, up to 100m for resolutions
*Multiplatform support: PC,Mac, Sun and terminal-based systems
*No software required-convenient computer selection via port
selection switches , Hotkeys and intuitive On Screen Display( OSD) menus
*Auto Scan feature for monitoring user-selected computers
Technical Specification:
|
Function |
KVMS-C08 |
KVMS-C16 |
|
Computer connections |
8 |
16 |
|
Prot Selection |
Pushbutton Switches, OSD |
|
Connectors |
Console |
KB |
1 x 6P Mini-DIN F(Purple) |
|
Video |
1 x HDB-15F |
|
Mouse |
1 x 6P Mini-DIN F(Green) |
|
KVM Ports |
8 x RJ-45 |
16 x RJ-45 |
|
F/W Upgrade |
1 x RJ11 |
|
Power |
3-Prong AC socket |
|
Switches |
Port Selection |
8 x Pushbutton |
16 x Pushbutton |
|
Reset |
1 x Semi-recessed pushbutton |
|
F/W Upgrade |
1x Slide |
|
Power |
1x Rocker |
|
LEDs |
On Line |
8 (Green) |
16 (Green) |
|
Selected |
8( Orange) |
16( Orange) |
|
Power |
1(Blue) |
|
Station ID |
2*7- Segment (Orange) |
|
I/R Rating |
AC 100-24V,50/60Hz |
|
Power consumption |
7W |
10W |
|
Emulation |
Keyboard/ Mouse |
PS/2 |
|
Video |
1600x1200@60Hz(50m);
1280x1024@60Hz(100m);
DDC2B |
|
Environment |
Operating Temp. |
0-50 degree |
|
Storage Temp. |
-20-60 degree |
|
Humidity |
0-80%RH |
|
Physical
Properties |
Housing |
Metal |
|
Weight |
2.75kg |
|
Dimensions |
437x161x44mm |
|
